研究作品集Research portfolio

信号变乱时,模型到底还能相信多少?How physiological models behave when the signal gets messy.

我的工作沿着生理数据从采集走到端侧推理,重点关注运动和不确定输出。这里放在一起的是 CITRUS、HealthRing 与非 EEG 睡眠分期研究;每项结果旁边也保留它的评测边界。My work follows physiological data from collection to deployed inference, with particular attention to motion and uncertain outputs. This portfolio brings together CITRUS, HealthRing, and my non-EEG sleep-staging study, with the limits of each evaluation stated alongside the results.

01

单作者 MPhil 研究 · 可穿戴 PPGSingle-author MPhil work · Wearable PPG

怎样知道一次心率估计是否可信Knowing when a heart-rate estimate is trustworthy

运动会让脉搏、动作和谐波峰同时落进心率范围。CITRUS 不急着压成一个数字,而是保留多个候选,沿时间做因果追踪,并在证据不足时暂不输出。Motion can put pulse, movement, and harmonic peaks in the same heart-rate range. CITRUS keeps several candidates alive, follows them causally, and withholds an output when the evidence is weak.

  • 学习排序器从每个窗口约 140 个候选中选择;因果 Viterbi 解码抑制不合理跳变。A learned ranker chooses among roughly 140 candidates per window; causal Viterbi decoding prevents implausible jumps.
  • 接受 / 保持 / 拒绝层把覆盖率与误差之间的取舍直接展示出来。An accept / hold / reject stage makes the trade-off between coverage and error visible.

实验架构与数据集作用Experimental architecture and comparison roles

01

RingDatasetV2

主要基准primary benchmark

02

PPG-DaLiA

外部腕部 BVP 验证external wrist-BVP validation

03

Sports cohort

高运动边界high-motion boundary

04

MMPD / rPPG

跨模态边界cross-modality boundary

第 1 层Layer 1

DSP 候选DSP candidates

第 2 层Layer 2

CITRUS 排序器CITRUS scorer

第 3 层Layer 3

因果 ViterbiCausal Viterbi

第 4 层Layer 4

可靠性层Reliability layer

第 5 层Layer 5

接受 / 保持 / 拒绝Accept / hold / reject

候选选择替代了在受污染 PPG / BVP 窗口上直接回归单个数值。Candidate selection replaces direct scalar regression for corrupted PPG/BVP windows.

因果解码只使用当前和过去窗口,便于实时部署。Causal decoding uses current and past windows for real-time deployment.

可靠性报告同时给出全覆盖误差与真正发出的可用数据流。Reliability reporting separates full-coverage error from usable emitted streams.

14.39→10.91
运动 MAE · BPMmotion MAE · BPM
6.2 BPM
最佳 50% 覆盖best 50% coverage
156 ms
ESP32-S3 · 每窗口ESP32-S3 · per window
~145 KB
模型大小model size

02

Scientific Data 2026 · HealthRing 数据集Scientific Data 2026 · HealthRing dataset

HealthRing:面向指环健康感知的生理数据集HealthRing: Physiology Dataset for Health Sensing on Rings

HealthRing 同步采集指环 PPG、加速度与临床参考信号,覆盖静息、日常活动和跑步。我作为共同作者参与模型实验、数据检查和 Android 端验证。HealthRing synchronizes ring PPG, accelerometry, and clinical references across rest, daily activity, and running. As a co-author, I contributed model experiments, data checks, and Android-side validation.

  • 团队数据集包含 54 名成年参与者和 49.76 小时记录。The team dataset contains 49.76 hours from 54 adults.
  • 正式论文把采集协议、传感器布局、生理参考与基线评测放在同一记录中。The published record connects the collection protocol, sensor layouts, physiological references, and baseline evaluation.

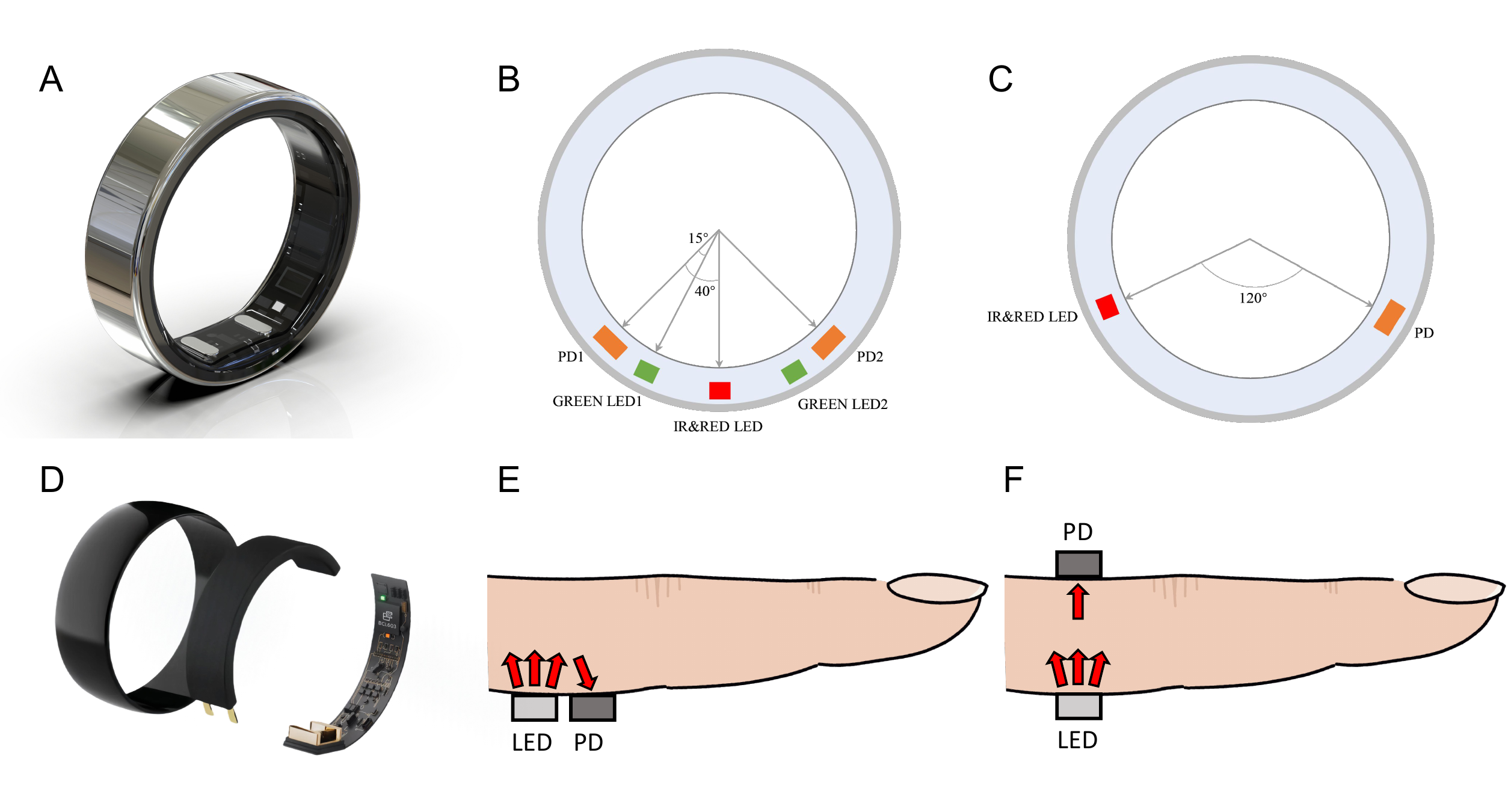

HealthRing 指环硬件与传感器布局
Sci Data
期刊journal
2026
已发表published
PPG/ACC
信号signals
HR/RR
参考references

03

单作者预印本 · 非 EEG 睡眠分期Single-author preprint · Non-EEG sleep staging

可穿戴兼容信号究竟能做到什么?How far can wearable-compatible signals go?

这项受控分解研究比较消费级与实验室级心肺信号究竟能恢复多少睡眠结构,并检查系统在什么情况下应该放弃低置信度时段。This controlled decomposition asks what consumer and laboratory cardiorespiratory signals can honestly recover about sleep architecture, and when a system should abstain.

  • 所有信号组使用同一个紧凑 Mamba2 模型,避免把换模型带来的收益算到信号上。The same compact Mamba2 model is used across signal groups so gains are not hidden by a model change.
  • 置信度报告用于检验:暂不判断最不确定的时段后,保留下来的结果是否真正更可靠。Confidence-aware reporting tests whether withholding uncertain epochs produces a meaningfully better subset.

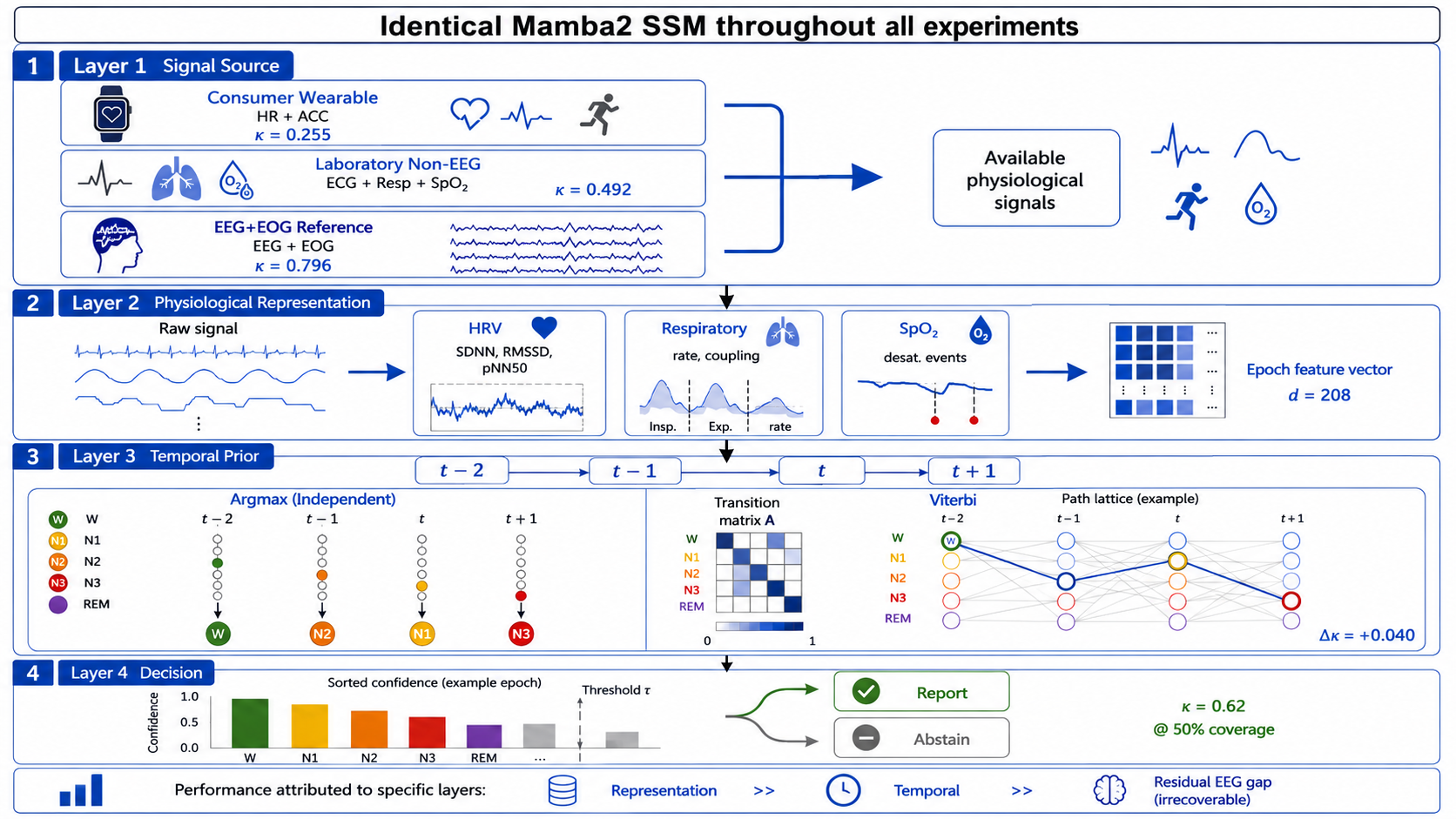

非 EEG 睡眠分期四层分析框架
0.255
消费级 HR / ACC κconsumer HR / ACC κ
0.492
心肺信号 κcardiorespiratory κ
0.796
EEG / EOG κEEG / EOG κ
.452→.512
拒识 20% 后after withholding 20%

从研究到系统From research to systems

原型与系统演示Prototype & system demos

视频通过百度网盘打开,三条链接的提取码均为 wyrm。The videos open in Baidu Netdisk; the access code for all three links is wyrm.

01

外链视频External video

夜间高血压筛查光纤床垫原型Fiber-optic mattress prototype for nocturnal hypertension screening

光纤生理信号采集、实时心率 / 呼吸率估计与 Qt 界面的外部演示。External demo of fiber-optic acquisition, real-time heart-rate and respiratory-rate estimation, and the Qt interface.

打开演示Open demo百度网盘Baidu Netdisk · 提取码code wyrm

更多工作与经历More work and background

简历列出完整时间线;项目页则展示这些研究想法怎样落到可运行系统里。The CV gives the full chronology. The projects page shows how these ideas were tested in working systems.
